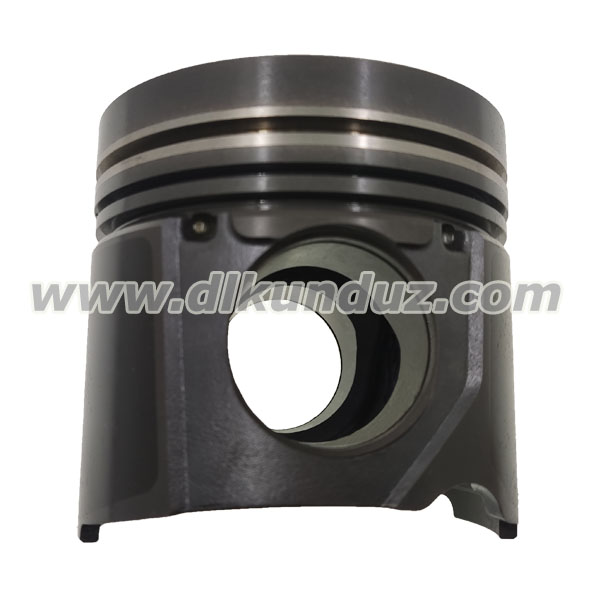

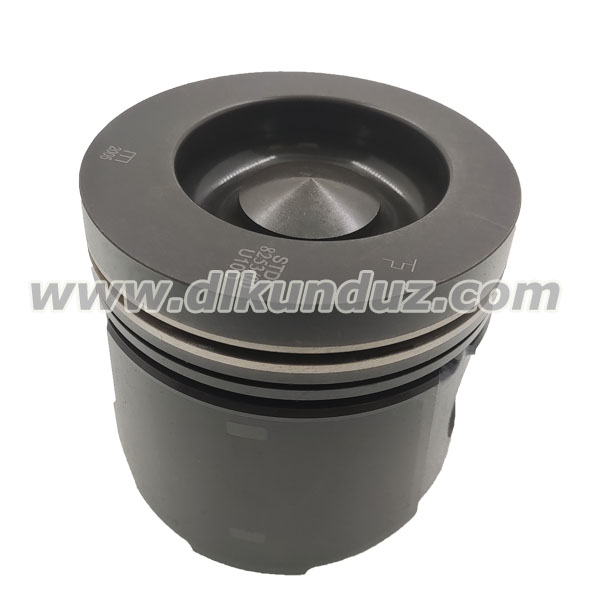

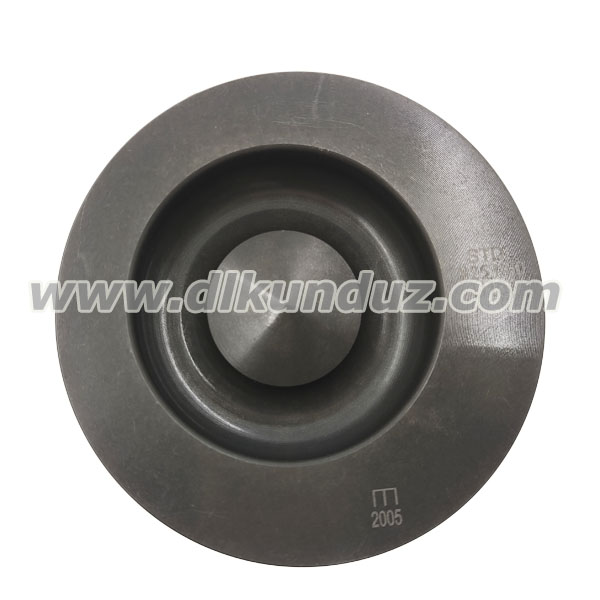

D6D BF6M2012 Piston set 04258283 04501365 04252842
Cylinder Bore [mm]:98,0 mm
Length [mm]:91 mm
Compression Height [mm]:50,65 mm
Recess Depth 1 [mm]:17,5 mm
Recess Diameter [mm]:61,06 mm
Bolt length [mm]:76 mm
Bolt Ø [mm]:38 mm
Machined:with cut-out for oil jet
Surface:Coated
Supplementary Article/Info 2:with piston ring carrier
Supplementary Article/Info 2:without cooling duct
Connecting Rod Design:Trapezoidal Connecting Rod
Production Number:98 L 96
Piston Clearance [mm]:0,10 mm
Product Description：
1Name:Piston set
2.Part number： 04501365
3.Model: Apply to D6D BFM2012 Deutz engine.
5.Condition:New
6.MOQ: 1 pieces
7.Packing:Cartons
Comany profile:
Dalian Kunduz Trading Co., Ltd speclized in diesel engine parts for many years.
We mainly FAW Jiefang diesel engine parts models CA498, CA4DD, CA4DH, CA6DH,
4DK, 6DK, TCD8.0.
Deutz models 912/913/914, BFM1013, BF2012, TCD2012, TCD2013, BFM1015, TCD2015.
We have a professional system for you to inquire about the accessories you need.
At the same time, we have a large warehouse with a very rich inventory to meet your fast delivery needs.
> I have a question ,How to check the parts?
You can provide the part number directly then we check the stock.
2. What I don't have a part number ?
R: You can check the engine name plate on the engine then send to me .
3. What is the engine name plate?
R:Usually a engine has two engine nameplates, one is located on the valve cover, the other is
located between the cylinder block and the oil pan,you can check the example as follow:
